Small Text and Summa Cutter

Discussion in 'Summa' started by rdm01, Aug 7, 2020.

  1. rdm01

    rdm01 Very Active Member

    1,011
    0
    36
    Dec 28, 2007
    Portland Metro Area
    Hello,

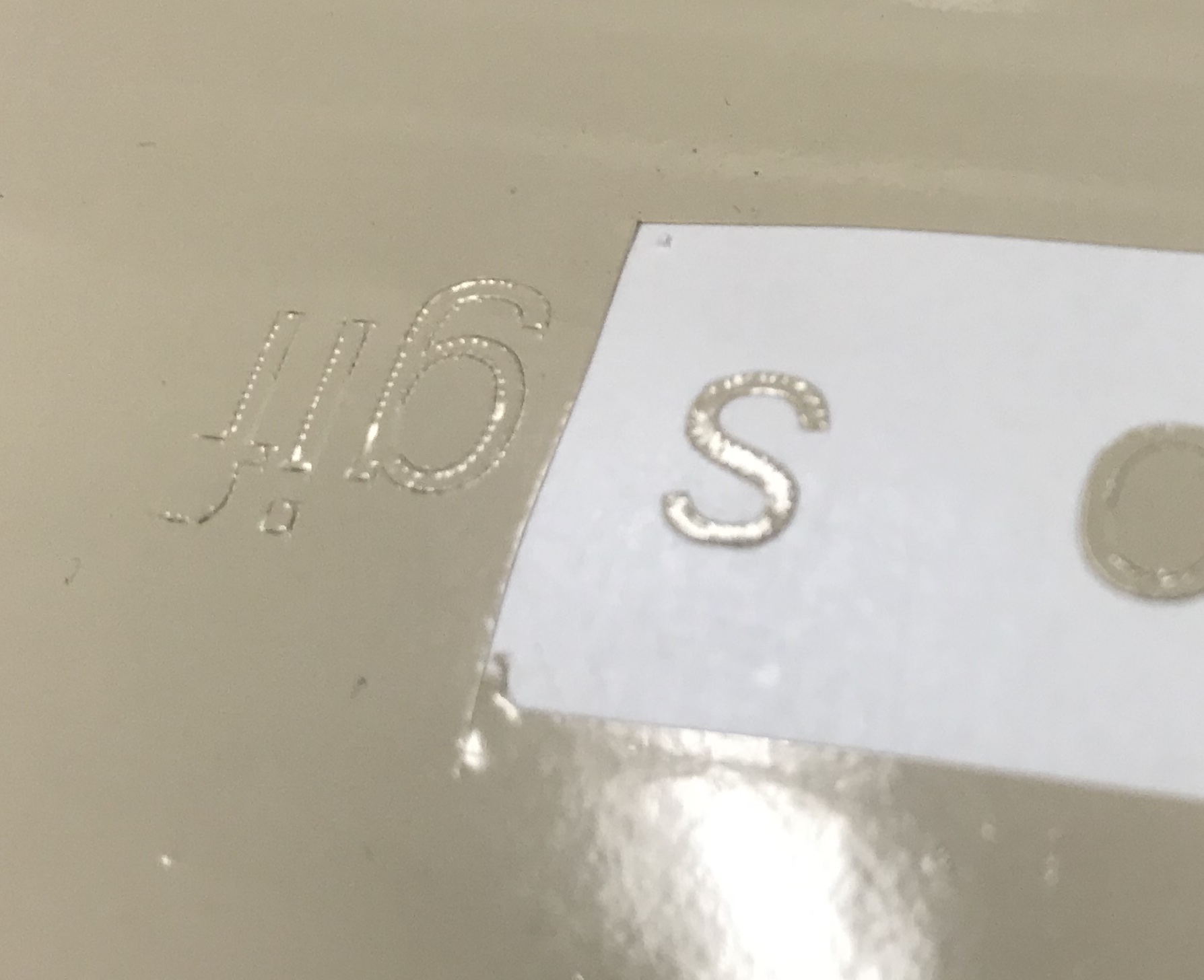

    Trying to cut some small (3/8" lc, 1/2" UC) lettering on our Summa S2 T160. The letters aren't cutting cleanly, and weeding isn't making anyone around here happy.

    See attached image. It looks like it's ripping around curves. Letters aren't coming out cleanly, and I swear our old Graphtec drag knife did this project better!

    We've tried 30 and 60 degree blades, and all different combinations of blade depth and cutting pressure (albeit somewhat blindly).

    Setup tips from those with experience would be really helpful!


    Attached Files:

    Tags:
  2. Johnny Best

    Johnny Best Very Active Member

    3,423
    1,915
    113
    Dec 9, 2015
    buffalo ny
    From that pic you are cutting to deep into the backing paper. You should only have your blade sticking out the thickness of the vinyl. Slow down your cutting speed also.

    • Agree Agree x 3
  3. Saturn

    Saturn Member

    81
    20
    8
    Aug 14, 2018
    Oregon
    Agree that it looks too deep. I always start light and then work my way up to the correct depth. A small turn makes a lot of difference. Blade depth (or extension) will be more slightly more important than pressure, and you would want to more or less be as light as possible without affecting the cut consistency. If I were just cutting (kiss cut) through a cast vinyl and no laminate I'd be around 80g or less on my S2—although you have a lot of leeway for pressure if the blade is the right depth.

    Also, the jagged cut looks like a blade offset issue. Your cuts should not have that burred edge to them. I often tweak the offset of my blade at least once over it's lifetime to keep the cut as smooth as possible.

  4. TammieH

    TammieH Very Active Member

    1,084
    67
    48
    Nov 28, 2011
    Pacific NW
    I cut 1/4" tall letters on our graphtec, the trick is, if at all possible ...
    first: cut lines between lines of copy or weed borders.
    second: weed the centers only
    3rd: mask then apply vinyl to substrate, to make this easier to line up cut registration squares on your corners
    fourth: weed applied vinyl.

    Good luck...and as Johnny said you are cutting to deep....make sure you are cutting best quality if there is a setting

    You should be able to cut small letters with your summa...also, could your blade be chipped?

    • Agree Agree x 1
  5. Jburns

    Jburns Active Member

    723
    140
    43
    Jan 19, 2009
    Denver
    Also calendared vinyl is the worst for small text. Cast has always been best for me.

  6. rjssigns

    rjssigns Major Contributor

    5,164
    521
    113
    Jun 4, 2007
    Home Office
    I agree with Johnny Best and Tammie H. Also like to add for small text we use 3M Electrocut with the poly backing. Costs more but haven't found anything better. We have a Summa D610 and D140.

  7. BALLPARK

    BALLPARK Member

    487
    41
    28
    Dec 5, 2008
    Radford, VA
    We have cut some very small letters on our Summa. It looks like you're cutting to deep for sure. I was very impressed with the ease of weeding the small letters as we had Roland cutters before and I hated cutting small letters as it was a major pain to align them after we try to weed them.

    It could also be the vinyl that you are using.

    I've loved the Summa cutter and it's everything as described for us in terms of what it can do. It could be very small cuts or long runs... It's accurate and worth the money!!!

  8. Snydo

    Snydo Active Member

    549
    35
    28
    May 1, 2008
    Mid Michigan
    Way to deep, possibly a dull blade as well. You should barely be able to see the cuts when its dialed in, even on cheap vinyl.

    • Agree Agree x 1
  9. iPrintStuff

    iPrintStuff Prints stuff

    958
    255
    63
    Sep 3, 2018
    United Kingdom
    Have you looked at the cut file for that job? Are there excess points in the letters?

    One the blade depth is waaay too high. You should barely see any mark on the backing paper

    Two, that cut looks almost jaggy. Like the blade is moving a lot more than it should for simple curves.

  10. rdm01

    rdm01 Very Active Member

    1,011
    0
    36
    Dec 28, 2007
    Portland Metro Area
    Thank you, all, for the advise.
    Vinyl is cast (3M 220 Series). Blade may be dull, we have more on the way. The file looks fine, and was just outlined text. I will look into adjusting offset, though admittedly I will have look up exactly what that does...

    Vinyl is RTA, so I cannot weed on the substrate. I usually make fun of our team for that crutch anyway!

    It was the "jaggy" cuts that was getting me. I'll keep trying with the above advice.

  11. jerry369

    jerry369 Member

    71
    10
    8
    Nov 4, 2015
    Europe
    The tangential knife has not offset. If you see "Knife offset" as parameter you have set "Drag Knife" as current Tool. If you have set up a drag knife on the plotter and instead use a tangential knife this may explain your problem

  12. rdm01

    rdm01 Very Active Member

    1,011
    0
    36
    Dec 28, 2007
    Portland Metro Area

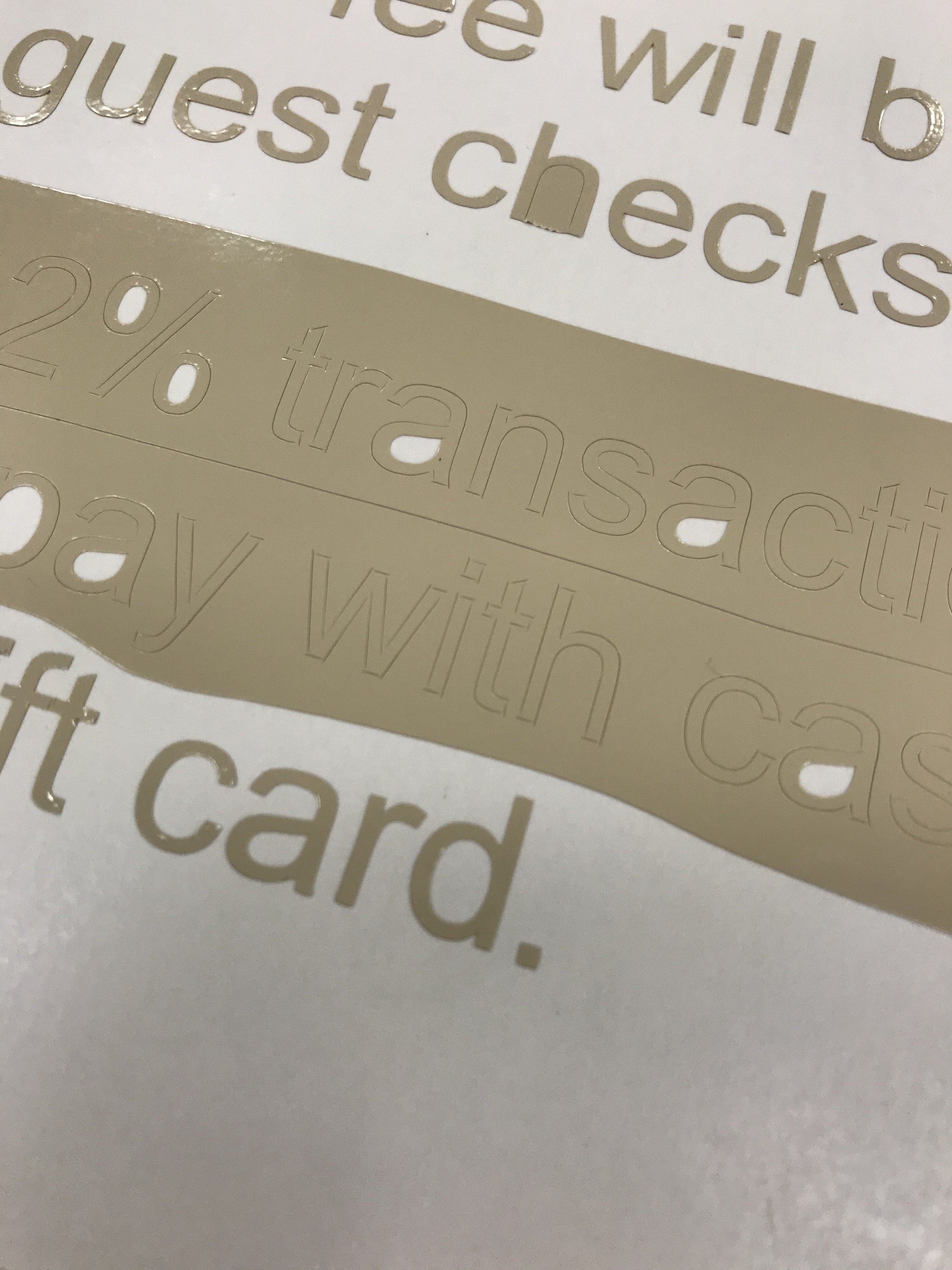

    No, it's definitely setup as tangential. It is cutting better, and without the tearing. However, after a piece was left over the weekend and had shrunk up a bit, I noticed the cuts do not align well at the corners. This is creating weeding issues, as one would imagine. What setting would need to be adjusted here?


    Attached Files:

  13. iPrintStuff

    iPrintStuff Prints stuff

    958
    255
    63
    Sep 3, 2018
    United Kingdom
    Have you tried turning the overcut up a bit? I’d test it in increments but it may help

  14. iPrintStuff

    iPrintStuff Prints stuff

    958
    255
    63
    Sep 3, 2018
    United Kingdom
    And is it just me or is it not completing the cuts?

  15. rdm01

    rdm01 Very Active Member

    1,011
    0
    36
    Dec 28, 2007
    Portland Metro Area
    It looks like they start late and finish late. If everything was moved "back" (against the direction of the cut) about .1mm-.25mm it seems we would be happier.

  16. iPrintStuff

    iPrintStuff Prints stuff

    958
    255
    63
    Sep 3, 2018
    United Kingdom
    Not anywhere near the summa just now but I’d definitely have a look at your overcut settings

  17. Saturn

    Saturn Member

    81
    20
    8
    Aug 14, 2018
    Oregon
    Glad you pointed this out, I was thinking and meaning Origin, but mistakenly saying Offset.

    Around page 56/57 you should find '2.2.4 Calibrating a tangential knife' in the Summa manual where it talks about what some of the calibrations for the blade on a tangential are. For me, I know that adjusting the origin can affect whether a cut is perfectly smooth in a straight line or has those little jittery, jagged effects.

  18. Andy D

    Andy D Very Active Member

    2,300
    428
    83
    Oct 20, 2014
    Hattiesburg, MS
    It looks like your off-set isn't set right.
    Here is a couple more tips for cutting vinyl.

    Setting depth:
    If you're not sure what the depth setting should be, send a test cut and raise or lower your cutting depth until you
    barely see the cut lines in the paper and then bump it up a tiny bit up... feel the back of the paper, you should just slightly feel the cutlines or not feel them at all.

    Check your cutting strip: This is the most neglected part of a plotter, if your cutting strip has deep cuts in it, replace it; it's inexpensive and very easy to do.

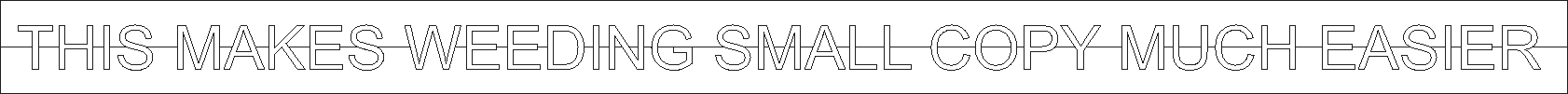

    Adding half cuts: small copy is much easier to weed if you're only weeding half the letters at once, they're much less likely to pull up.
    I weed the centers first and then outer vinyl. Note that I removed the cut lines from the center of the letters.


    • Like Like x 1
    • Agree Agree x 1
  19. Sharpeco

    Sharpeco New Member

    2
    0
    1
    Mar 17, 2020
    Raleigh
    I am having a similar problem with my Summa S2 D160 cutter, HELP!?

  20. Sharpeco

    Sharpeco New Member

    2
    0
    1
    Mar 17, 2020
    Raleigh
    How do you remove the cut line from the center of the letters? Please help!
