Take-up reel

Discussion in 'Roland' started by bovegas, Jun 13, 2009.

  1. bovegas

    bovegas Member

    170
    1
    18
    Sep 6, 2008
    Des Plaines, IL

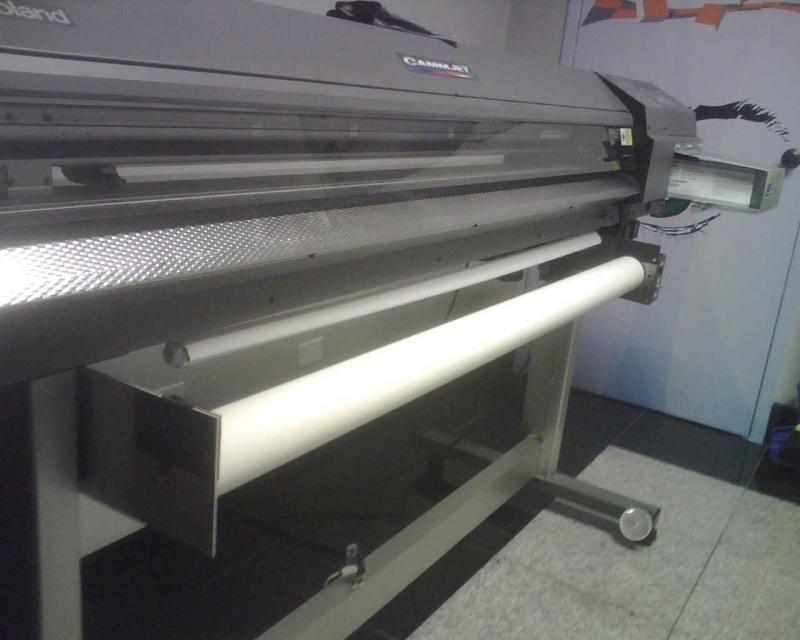

    I just have finished building take up reel and it works great. I tought this might be good idea to share with you guys because it was very inexpensive. Whole thing cost me $100 and works great. I have used 2 pieces of aluminum 6x12 inches 1/8" thick, 6' PVC tube, 2 cores from tape dispenser, 2 bolts, photoswitch with reflector, enclosure box from radio shack, 1 car relay, 1 small motor w/gearbox from small vacum cleaner, 1 switch with 6 prones and 1 switch with 3 prones. When media gets close to floor photoswitch activate motor and motor rolls media up for couple inches. I have some pictures you can see. This is the same system like on Roland TU-500 take up reel. I just used PVC tube instead of paper core. I can change direction of motor with switch. On TU-500 they put one extra switch for manual but I think thats a waiste since you can use your leg to cut the beam and you will have better control that way if you wanna roll finished media of the pvc tube. Let me know if you think I can add something.


    Attached Files:

    Tags:
  2. omgsideburns

    omgsideburns Very Active Member

    2,180
    0
    36
    Apr 15, 2008
    wow that's pretty neat.

  3. DRamm76

    DRamm76 Member

    496
    1
    0
    May 17, 2007
    Very cool. You should consider looking into partnering up with a company to market it for you. VERY innovative

  4. Gene@mpls

    Gene@mpls Very Active Member

    2,029
    111
    63
    Jun 17, 2003
    Blaine, Mn
    Nice- I have a BBQ rotisserie motor and similar photo switch waiting for me
    to find a little spare time. How do you remove the wound up vinyl? Gene

  5. sfr table hockey

    sfr table hockey Very Active Member

    1,212
    0
    36
    Jan 24, 2009
    Alberta
    Great stuff Bo.

  6. bovegas

    bovegas Member

    170
    1
    18
    Sep 6, 2008
    Des Plaines, IL
    removing wound up vinyl

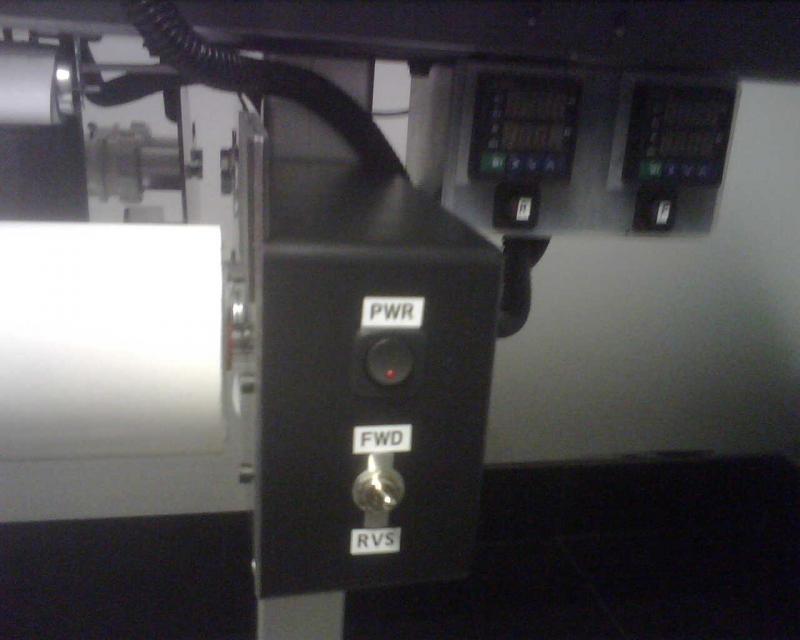

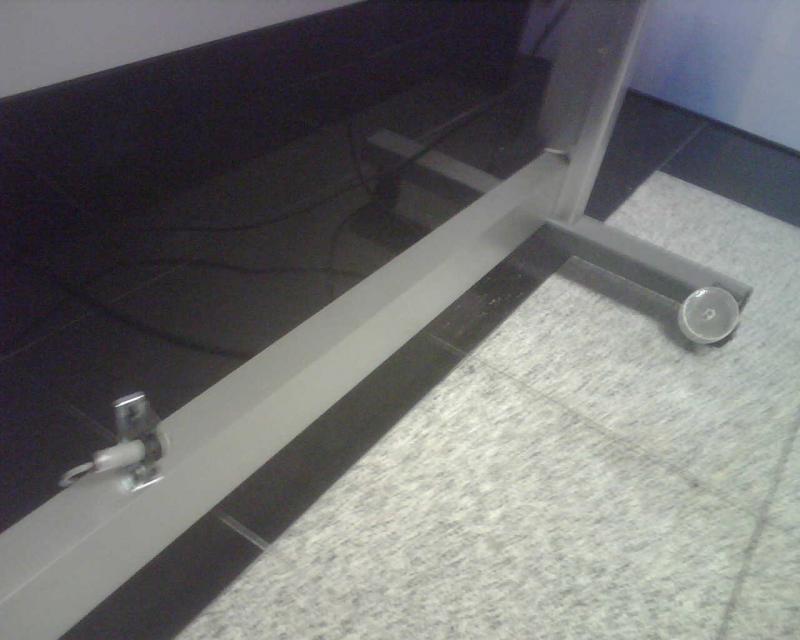

    As you can see on picture of control box there are forward and reverse position of the switch. I just place switch in reverse position and place my foot in front of the reflector. Motor will go in reverse direction as long as my foot is in front of the reflector( reflector is like a miror. You can see it on atached picture. It is across from the photoswitch.) Roland has extra switch for manual turning in reverse direction, but I think my idea is better since you can control motor better with your foot and you have both hands free to wound vinyl on paper core. Also I dont have to drill wholes in printer frame to mount switch and reflector( i did it because my printer is old). Do you guys think this could sell if I offer it to Fellers for example. I would ask about $500.

  7. bob

    bob Major Contributor

    5,287
    308
    83
    Nov 4, 2005
    earth
    A pragmatic solution but innovative? Hardly, that's exactly the way the take up tackle on my old Mutoh Falcon Outdoor worked. A mechanism that I liked far better than the take up gear from hell on the Valuejet.

  8. bovegas

    bovegas Member

    170
    1
    18
    Sep 6, 2008
    Des Plaines, IL
    Inovative?

    This idea is from Roland TU-500. Its just much cheaper and I think pvc tube on aluminum frame is much more rigid than solution they were using. They conected paper core with some flange directly on motor gearbox so its easy to brake. They are asking $1995 and material cost is about $100. Again this could be mounted on printer withaut drilling any holes same like Roland sugested for their take up reel.

  9. 1leonchen

    1leonchen Member

    392
    1
    18
    Feb 12, 2009
    The carribbean
    genius


  10. Gene@mpls

    Gene@mpls Very Active Member

    2,029
    111
    63
    Jun 17, 2003
    Blaine, Mn

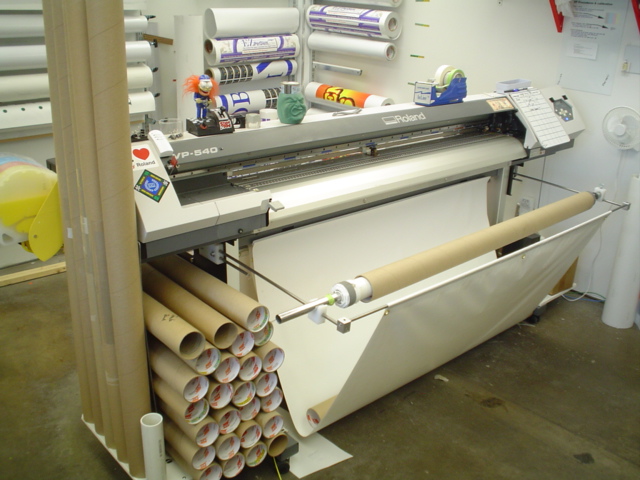

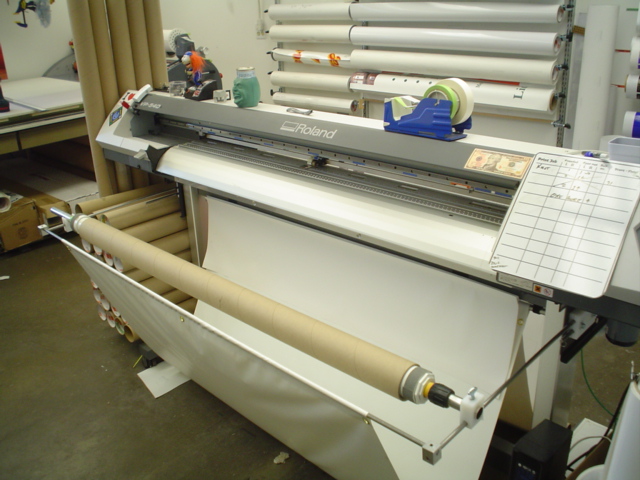

    I did see the reverse button- I like to wind onto a core and be able to
    remove it, stand on end and fan out/unroll it under a fan to get some
    air circulation overnight before lam/cut. That is the direction I am going,
    I have a hand winder that works that way now. The left end will lift off
    so that the core can be slid off- I just need to add the motor and photo
    switch. Gene


    Attached Files:

  11. bovegas

    bovegas Member

    170
    1
    18
    Sep 6, 2008
    Des Plaines, IL
    I don't understand why you wanna take core completelly of the frame. You can put fan next to it and roll on empty paper core. Otherwise you have to make another frame to place those rolls you took of the take up reel.

  12. cgsigns_jamie

    cgsigns_jamie Very Active Member

    I like to keep my prints on the core. I can remove the core from the printer, let it dry, then put it right onto the laminator without having to re-roll the print.

  13. Gene@mpls

    Gene@mpls Very Active Member

    2,029
    111
    63
    Jun 17, 2003
    Blaine, Mn
    Ditto- I have an 11' table feeding my laminator with a roll holder on the other
    end. I try to dry everything overnight like the pict before lamming.

    Edit: Whoops- forgot to rotate the pict.


    Attached Files:

  14. bovegas

    bovegas Member

    170
    1
    18
    Sep 6, 2008
    Des Plaines, IL
    drying

    If you like to dry prints I would make one frame with wheels and a same setup and put fan under it. I make my own profiles and run low temperature on heaters, but still prints are dry by the time it hits take up reel. Also on the left side of the aluminum plate would be easy to make that plate removable so if somebody wanna take the roll out, it could just slide out of the tape dispenser core.

  15. Gene@mpls

    Gene@mpls Very Active Member

    2,029
    111
    63
    Jun 17, 2003
    Blaine, Mn

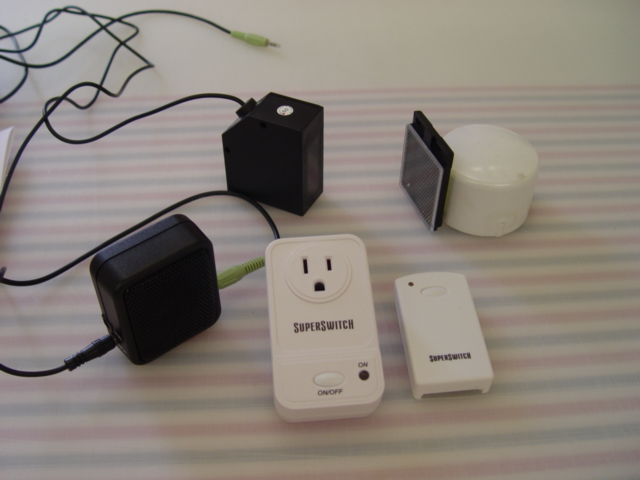

    Hi Bovegas- is your motor 115v? I am trying to figure out how to turn my
    115v motor on and off with the infrared security alarm. I have a 115v remote
    switch to do the actual switching- just need to trigger it. Can you expand
    upon your control system. Thanks Gene


    Attached Files:

  16. joezeppii

    joezeppii Member

    88
    0
    6
    Jul 27, 2005
    Indiana
    That's cool!!!!
    Wanna make me one?

  17. ERIKADESIGNS

    ERIKADESIGNS New Member

    1
    0
    0
    Nov 17, 2009
    This is so amazing

    Out of curiosity, how much would you charge a client to build one of these for a VP540? I would rather support people in the business

    thanks,
    Erika

  18. theautospecialist

    theautospecialist New Member

    3
    0
    0
    Aug 29, 2011
    Did you ever end up selling any of these

    great idea, did you ever end up selling any of these, we have a Roland 54" printer/cutter and we are looking for something right now , thanks

    Joe

  19. BannersPlusMfg

    BannersPlusMfg New Member

    1
    0
    0
    Jan 8, 2013
    Take Up Reel

    Can you send me pictures of this take up device you have built?

  20. wmshuman

    wmshuman Member

    142
    0
    0
    Apr 14, 2005
    :iamwithstupid

  21. MikeD

    MikeD Active Member

    594
    0
    0
    Oct 25, 2011
    we've made similar take-ups for some of our printers and 1 of our laminators. The photo switches are great for the printers, but for the laminator, we put a torque limiter near the motor for a couple different reasons.
    For printing, I like the idea of having the take-up a little lower and supplement the whole set-up with an IR drier and a fan.
    The most helpful part of either device would have to be the addition of flanges to help rewind the media concentrically.
    It's always a great feeling to figure these things out...you save money, and even more important you know exactly whats involved with the piece of equipment since you designed and built it.
    Yours looks great!
