ANAGraph Elite Express 60E - not plotting

[Mikistromar]

Thanks for answer. I got null modem cable but not work properly.
In plotter is wiring 25F
2-green
3-white
4-red
5-broun
6-8-20 together at

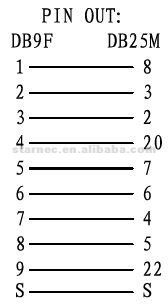

my wire in cable 9F PC - Plotter 25M
9F and 25M
1 - 8
2 - 3
3 - 2
4 - 20
5 - 7
6 - 6
7 - 4
8 - 5

Work when i to mark where to cut, but if send cut/plot nothing work. Only writin to LCD
[PGING:
Tool Toggle: ENTER
But if I press enter - there is nothing like it was plotter a frozen.
I don`t now what is a problem my be cable or mainboard.
Please help me.



[Techman]

this is a serial to serial system. Use a null modem cable from the serial port on the computer to the port on the cutter. serial and parallel looks alike,, So check to be sure you are plugged ito the serial port.



[Mikistromar]

this is a serial to serial system. Use a null modem cable from the serial port on the computer to the port on the cutter. serial and parallel looks alike,, So check to be sure you are plugged ito the serial port.

Yes i plugg to serial port COM1 to computer and another to db25M to plotter.
And parameter set correctly. Test is ok but not cut. Do you now how is correctly wire this cable.



[Techman]

simply purchase a NULL MODEM cable..



[Alex-men]

Gracias por el aporte generare mi cable serial con su diagrama, gracias al los que ayudan sin interes
