DX7 Roland BN20 Printhead does it take 28 x Pin Cables, 29 x Pin Cable or mixed? anyone know?

[Solventinkjet]

I have found one thing with working on printers is you tend to make mistakes ( hopefully not too expensive ) and that is how you learn, and also if you are working on a faulty printer then you know which things to check.

Blowing the fuses is very common, the amount of posts on here from people who have changed head cables or unplugged them, then the head doesn't work afterwards !

Blowing fuses and breaking head manifolds is a rite of passage for all techs!



[damonCA21]

Blowing fuses and breaking head manifolds is a rite of passage for all techs!

Absolutely! and the first few times you do it you never have any spare ones with you. You soon learn



[adamfromayr]

Got one working almost guys looks like the Magenta is blocked or faulty no Magenta ink coming through but was running okay and printing the other colours

Will have to take head off and look closely at it see if i can see any blockage on dampeners etc

2nd BN20 has to wait needs a new encoder strip felt wipers etc all coming in the mail soon



Will be back once they're all fixed

"Slowly but surely"



thanks



[premiercolour]

We have original cables for BN-20. We actually specialize in BN-20 ink supplies and materials. We already have a BN2-20 in our office testing for supplies and materials.

Here is the link to the cables. You would need three of SKU# 1000007717 and one of SKU# 1000007716 for one complete set of cable.

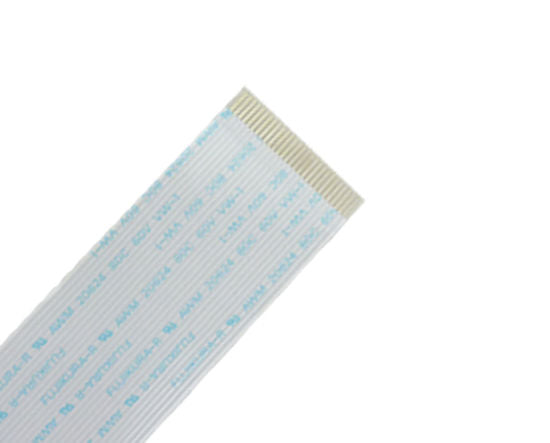

OEM Printhead Cable for Roland BN-20 (Part# 1000007716)

OEM Cable-Card, 28P1 1750L BB HIGH-V Part# 1000007716 1750mm or 69", 28 Pins 1 piece only It connects between printhead to the mainboard All OEM parts are final sale without warranty if not installed by a certified Premier Colour Technician Order by 11:00AM PST for same day shipping from...

www.premiercolour.com



[adamfromayr]

We have original cables for BN-20. We actually specialize in BN-20 ink supplies and materials. We already have a BN2-20 in our office testing for supplies and materials.

Here is the link to the cables. You would need three of SKU# 1000007717 and one of SKU# 1000007716 for one complete set of cable.

OEM Printhead Cable for Roland BN-20 (Part# 1000007716)

OEM Cable-Card, 28P1 1750L BB HIGH-V Part# 1000007716 1750mm or 69", 28 Pins 1 piece only It connects between printhead to the mainboard All OEM parts are final sale without warranty if not installed by a certified Premier Colour Technician Order by 11:00AM PST for same day shipping from...

www.premiercolour.com

Best to advertise on eBay
