Need Help Flexi 10 settings

Discussion in 'Flexi' started by Alicia Zee, Sep 17, 2018.

  1. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Hi. I'm very much a novice with computer graphics in general and am pulling me hair out on a weird little glitch I'm having with Flexi 10: Whenever a vector file has a curved line(like an 'O', etc.) Flexi instead, draws multiple straight lines(between anchor nodes). I first thought it might be a firmware issue but then realized that this doesn't happen when sending files to my plotter with Illustrator. It's probably just a simple setting that I'm overlooking, but it's now holding up 3 jobs and so I'm hoping someone here might have a pro-tip that will sort me out.

    If it's any help, I'm using
    Flexi 10(with Windows 8 driver)
    Windows 10
    Roland Camm-1 Pro, GX300

    Thanks!
    Alicia

  2. FrankW

    FrankW Very Active Member

    1,186
    92
    48
    Oct 19, 2008
    Germany
    Are the files been illustrator-files too? I dont think so. The symptoms you describe are typical for special file types.

  3. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Hi Frank,

    Thanks for your thoughts on this ~ though I'm not 100% sure I'm understanding your question correctly :/

    This has happened with about 7 different client-provided vector files that I've tried sending to the plotter via Flexi, including ai, pdf, and eps files, as well as when I've tried creating a new file within Flexi. Each time, when it's supposed to draw a curved line it is instead, drawing straight lines between anchors points :/

  4. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Hi Frank,

    Thanks for your thoughts on this ~ I just sent a lengthy reply, but it seems to have gotten lost in transmission :/

    So ~ if I'm understanding your question correctly ~ I've so far had the same issue with about 7 different, client-provided files, including ai, pdf, and eps files, as well as when I've tried to create a new(letter) file within Flexi. Each time any line that should be drawn as a curve is represented as several straight lines between anchor points.

    I would attach a picture of what I'm talking about...if I could figure out how to :/

  5. Joe House

    Joe House Active Member

    868
    184
    43
    Feb 5, 2004
    WA
    This is probably coming from the program that is creating the files. If you were to create the same file in Flexi, it would give you smooth Bezier curves (assuming you're using a good font). I've seen this happen (though not recently) coming from cad programs (like autocad) that are oriented towards mechanical drawing rather than Design focused programs (such as Flexi, AI, Corel, etc)

  6. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Ah... I figured out how to attach a picture... and also that the first message was, in fact, posted :/


    Attached Files:

  7. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Hi Joe,

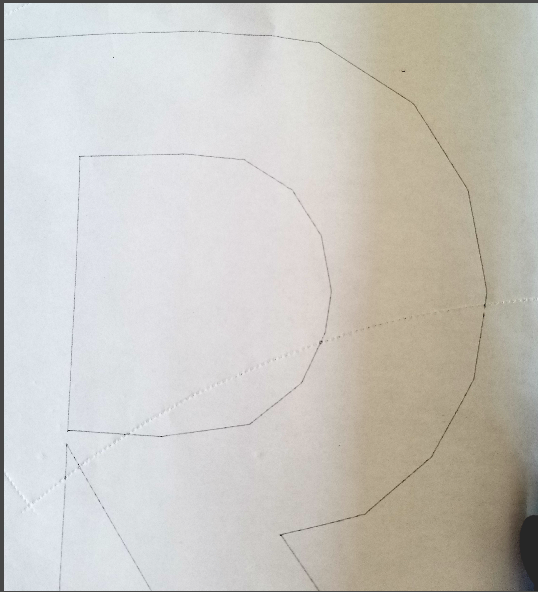

    Alas, this is happening with most of the commonly used files: ai; eps; pdf, *as well as* when creating a file in Flexi. The image below was created within Flexi, using the font Agreloy;


    Attached Files:

  8. Snydo

    Snydo Active Member

    519
    20
    18
    May 1, 2008
    Mid Michigan
    Sounds like you have a hidden mask of some sort which you are bringing into flexi.....flexi isnt particularly fond of masks created in other software. Try flattening the image in source program.

    Oops nevermind, just saw your most recent post.

    Last edited: Sep 17, 2018
  9. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Hi Snydo,

    Thanks for your input on this. Could this also happen when creating a new file with Flexi, or only when importing a file to Flexi?

    Sorry...I am very new to using Flexi, so know nothing of these masks of which you speak :/

    Thanks,
    Alicia

  10. Joe House

    Joe House Active Member

    868
    184
    43
    Feb 5, 2004
    WA
    Something's not right there. Here's what I get with Agreloy.ttf:
    I happen to be using Flexi Sign and Print 12, but I would have expected the same thing from v10. You could try loading the factory defaults in the Preference manager and see if that solves your problem. - Be aware that this will remove your devices and any jobs that are saved in Production Manager, so don't do this till you can make notes of the connections of your devices and you're done with any jobs that might still be in the queue.

    Joe

    • Like Like x 1
  11. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Hi Joe,

    The first part of your sentence is cut off... could you re-post or edit your reply? I don't want to risk trying to extrapolate and then perhaps make things worse :(

    Thanks,
    Alicia

  12. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Okay, I'm going to try this and will let you know if this fixes things. Thank you!

  13. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    So, I set all preferences to 'Restore Defaults' in the following tabs:
    General
    File Paths
    Font
    Tools

    I then created a three-letter file using the Algeroy font. Sadly, it's still doing the same thing when sent to the plotter :'(

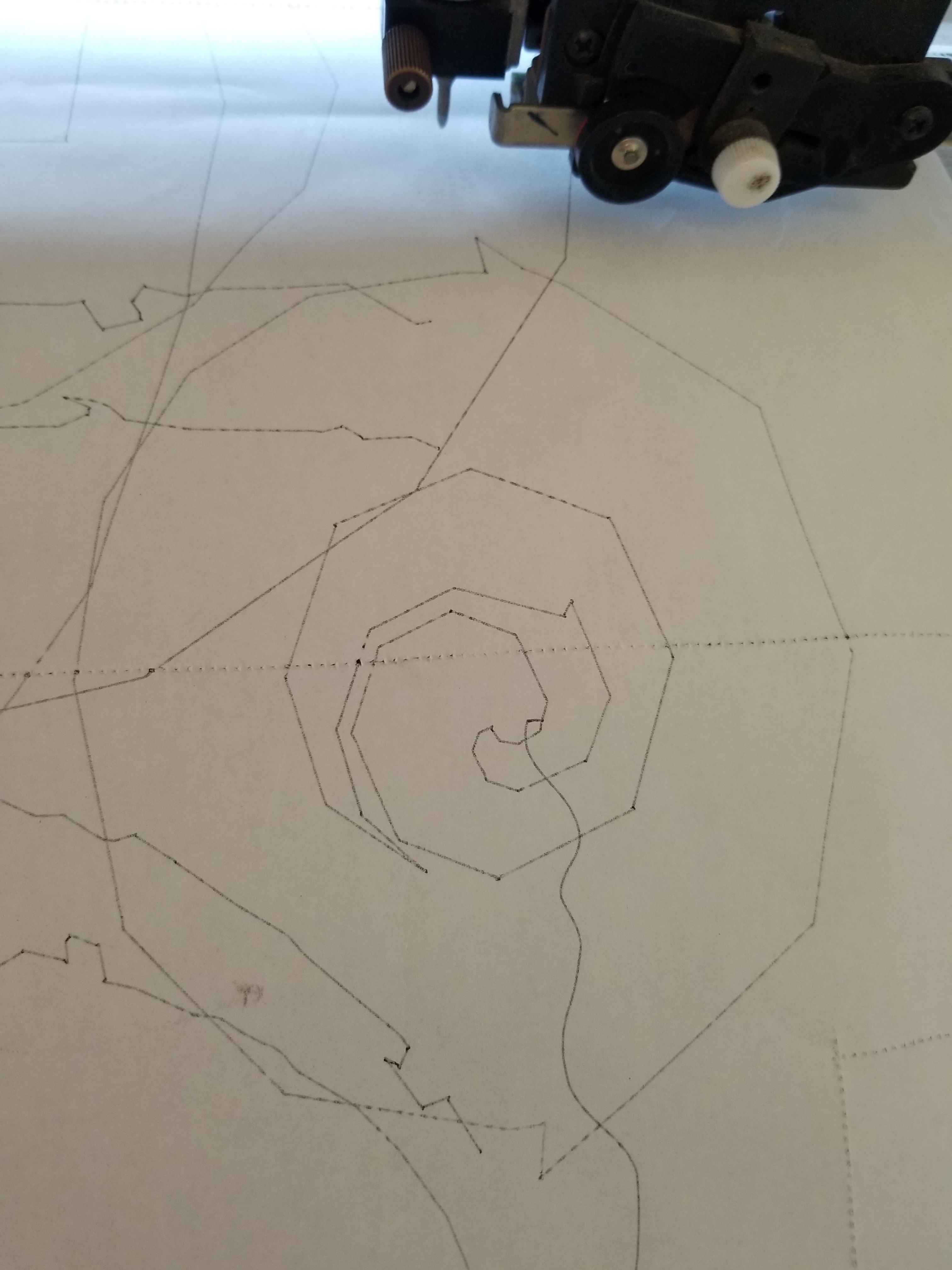

    Attached Files:

  14. Allen123

    Allen123 Member

    32
    3
    8
    Dec 15, 2017
    Oklahoma

  15. Allen123

    Allen123 Member

    32
    3
    8
    Dec 15, 2017
    Oklahoma
    Alicia,
    First just try a simple Cut/Paste. Don't know why, but a lot of times it makes a difference. I don't know why. Also convert fonts to shapes/outlines, and resave. Then open and see if there's any difference.
    Good Luck!!!!

    • Like Like x 1
  16. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Thanks Allen! I am going to try this and will let you know if this solves things. Fingers crossed!!

  17. Joe House

    Joe House Active Member

    868
    184
    43
    Feb 5, 2004
    WA
    Alicia,
    Close Flexi and Production Manager then go to the Start Menu and SAi and click on the Preferences Manager. Select Factory Defaults and click on load. This will essentially reset Flexi to where it was when it was first installed.

  18. night eagle

    night eagle Active Member

    607
    26
    28
    Mar 9, 2009
    Crowley tx
    i have a couple of thoughts, and im using flexi 11
    1. if your files are coming from ai, flexi does not play well with ai files...the file will have to be flattened on the customers side.
    2. i was thinking you could remove the nodes, but you might have to re shape the curves using the curve tool in the path edit toolbar.
    3. you might be able to turn the file into a bitmap in flexi, then turn it back into a vector and flexi will sometimes read that better.

    m

    • Like Like x 1
  19. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Hi Joe, I just went through the steps you suggested, then even restarted both computer and Flexi before trying again ~ same thing. I'm not even trying to open an external file, but simply creating a new file, typing in a letter and then sending it to the plotter.

    I'm now considering upgrading to Flexi 12 to see if this might help, but I've been warned that this could run a bit slower on the computer I have. Though at this point, slow would be 100% better than not working at all. That said, there's no way of knowing if that would even solve the problem.

    I've already had to pay FastSigns nearly $400 to plot patterns for me at $120 each ~ money I'd much rather have paid to someone to figure this out, but I haven't been able to find anyone locally who knows enough about both plotters and Flexi. The only other option I can think of is to try to convince all my customers to change their business names to ones that contain no curved letters or logos :'(


    Attached Files:

  20. Alicia Zee

    Alicia Zee New Member

    21
    2
    3
    Apr 5, 2018
    Los Angeles, Ca
    Thanks for your input, Night Eagle. Do you think these solutions might also apply when creating a new file within Flexi? Besides this issue happening with ai files, I'm having the same thing with eps and/or pdf files ~ as well as when simply creating a new file in Flexi,. I.e: typing in a (wireframe)letter and then sending it to the plotter.

    I just spoke with a friend in NC who has nearly the same plotter as me ~ he has a GX24, I have a GX300 ~ and is also using Flexi 10 with no issues. I'm beginning to think that it might be an incorrect driver or another compatibility issue. I was told by Roland that a Windows 8 driver would work with Windows 10, but I'm now wondering if this might be the problem ~ in which case, perhaps I need to either downgrade my Windows or upgrade my Flexi :confused:


    Attached Files:
