Homebrew winder and IR heater- 54"

Discussion in 'Tips & Tricks' started by Gene@mpls, Jul 7, 2012.

  1. Gene@mpls

    Gene@mpls Very Active Member

    1,861
    33
    48
    Jun 17, 2003
    Blaine, Mn
    This has been a work in progress- but I think is is done and I am
    satisfied. Not only am I cheeep- but I like to customize things to my

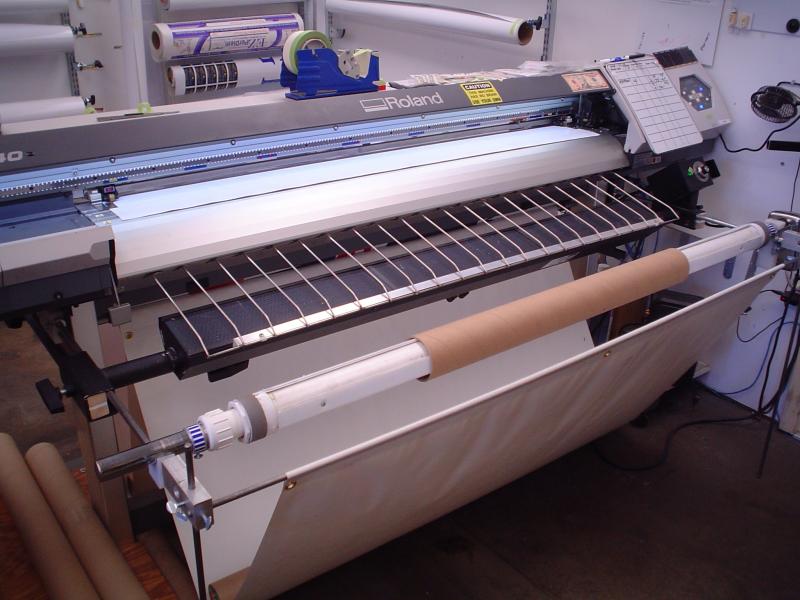

    tastes. The winder is a rotisserie motor (50 or 100$) with a homebrew
    brass adapter to turn a closet rod with various plastic plumbing fittings
    to get to the right size to slip a 3" core on. The plastic has some slip
    when fit to the rod and coro strips screwed to the plastic has tension/slip
    to the core. To load a core you lift the left side of the rod and slip it on-
    same to unload- to transfer the core to a wall mounted post leading to
    a 12ft table and then to the laminator. I don't think this is common- but...

    I also like that I don't have to stoop, as my stooper does not work as it

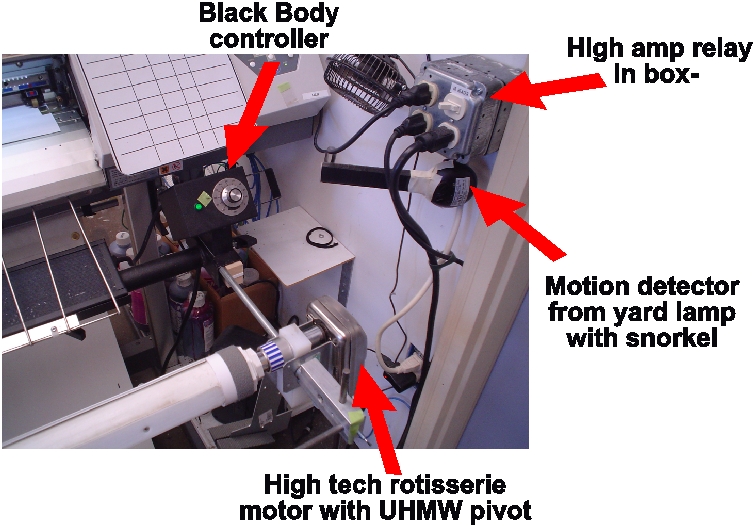

    used to. The winder is turned on/off by a motion detector/relay that also
    runs the IR heater. The snorkel picks up the print carriage and triggers
    the winder and IR- and shuts off after no motion for 4-5 min. This has not been a problem as the winder will slip for this interval and the IR does not overheat the vinyl before turning off.

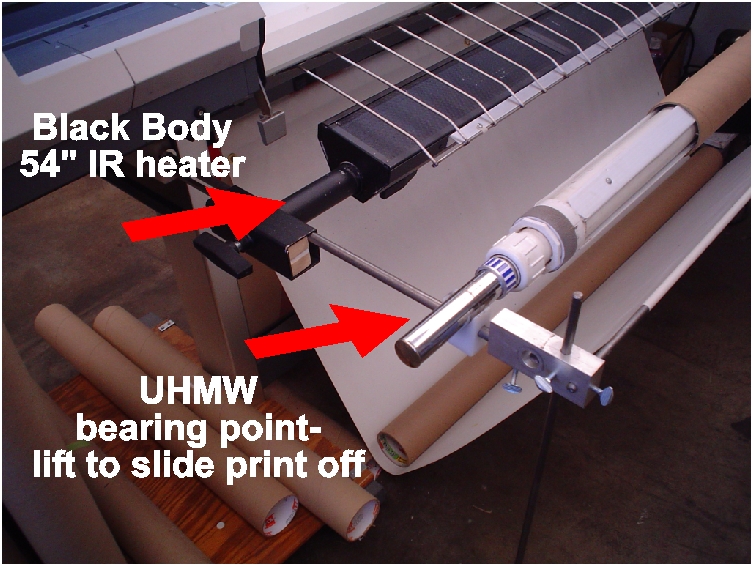

    The IR I bought is an add-on unit meant to add to an existing heater
    on a stand- cheaper and I didn't want the stand. I tried it on top of the
    vinyl but it is very clumsy so switched to the bottom with a stainless
    'grill' to keep the vinyl off until it is attached to the winder. IR heats from
    the inside out so I get good drying. When the vinyl is attached to the
    winder the vinyl is pulled taut- the distance can be adjusted with the
    large wing nuts which come with the unit.

    I am sure a lot of purists are puking on their shoes but it works for me
    and has made me a millionaire (joke- but multi-thousandaire). Gene


    Attached Files:

    Tags:
  2. rjssigns

    rjssigns Major Contributor

    4,216
    181
    63
    Jun 4, 2007
    Home Office
    Ultimate hack!:thumb: Need to post a drawing for those of us that want to DIY. I take it the motion sensor detects movement of the printhead?
    Very slick too with the IR heater.

  3. artbot

    artbot Very Active Member

    3,154
    6
    38
    Feb 18, 2010
    Houston TX
    that's pretty impressive. this deserves official franken-heater status.

  4. rjssigns

    rjssigns Major Contributor

    4,216
    181
    63
    Jun 4, 2007
    Home Office
    :ROFLMAO::goodpost::ROFLMAO: Franken-heater...too funny.

  5. Gene@mpls

    Gene@mpls Very Active Member

    1,861
    33
    48
    Jun 17, 2003
    Blaine, Mn
    High praise from someone I respect highly. Thank you Sir. :notworthy:

  6. Fatboy

    Fatboy Very Active Member

    Fantastic job

  7. wwpro

    wwpro Member

    147
    0
    0
    Apr 21, 2009
    me likey ! :D

  8. artaddict

    artaddict New Member

    19
    0
    0
    Aug 29, 2009
    Gosh, i wish i could be that innovative...

  9. Custom_Grafx

    Custom_Grafx Very Active Member

    1,637
    2
    0
    Nov 23, 2008
    You should send a blank email titled "feedback" to Roland and just attach those pics.

  10. Typestries

    Typestries Very Active Member

    1,581
    4
    38
    Jan 8, 2007
    NJ | VT
    nice makering........

  11. mnapuran

    mnapuran Active Member

    585
    11
    18
    Jun 22, 2008
    Plano (Dallas), TX
  12. Gene@mpls

    Gene@mpls Very Active Member

    1,861
    33
    48
    Jun 17, 2003
    Blaine, Mn
  13. phototec

    phototec Very Active Member

    3,136
    19
    38
    May 23, 2008
    Belton
    You did an excellent job on your DIY take-up device, I love when people like yourself (and me), go MacGyver and create something like you did, anyone can order something with a credit card, however it takes a special person to go down this road, you get 1000 ata-boys from me!

    :goodpost: :notworthy: :rock-n-roll: :clapping:

    So, what did you pay for the Digi heater?

    Thanks

  14. rubo

    rubo Member

    228
    0
    16
    Aug 4, 2011
    glendale ca
    Nice job! How hot can you go? Can you control the heat? I'm looking to retrofit my home-brewed flatbed - running SepiaX in it - so far with no heat, but would like to eliminate priming.

  15. anotherdog

    anotherdog Very Active Member

    1,191
    0
    0
    Sep 6, 2008
    nice! has me looking at my roland and wondering.

    I like the barbeque motor!

    What stops the motor from turning once the material is taken unto the roll? Does it just keep trying to turn until the motion detector turns it off?
