Homemade Coro One Color Screen Press

Discussion in 'Screen Printing' started by jiarby, Feb 28, 2010.

  1. jiarby

    jiarby Major Contributor

    4,532
    0
    0
    Feb 11, 2007

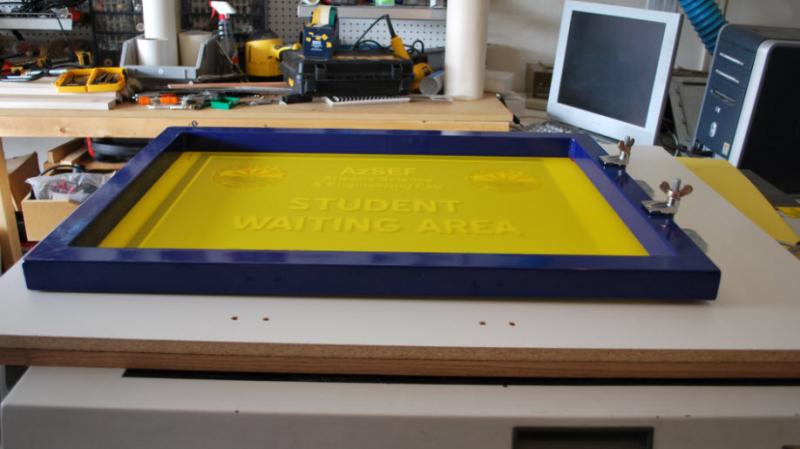

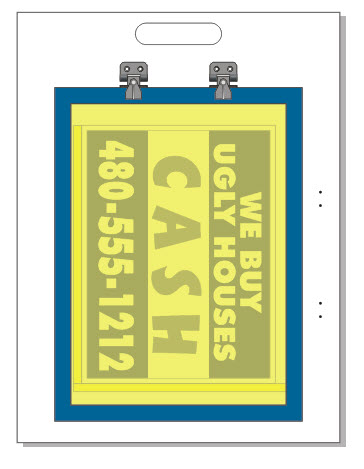

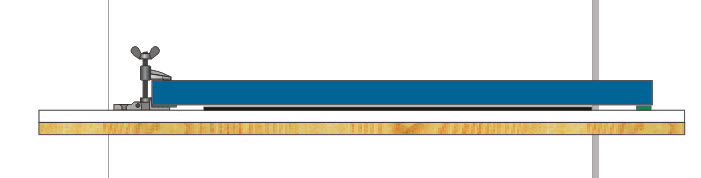

    Built a home-made one color press (using the loosest definition of the word) to screen print 18x24 bandit signs...

    $10 A simple 30x40 melamine base from Home Depot
    $22 A set of Jiffy Clamps

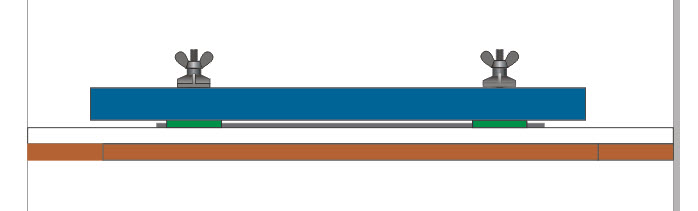

    $0 Some scrap Rowmark 1/8 spacers (to build up off contact)
    $0 Some more Rowmark to use as a guid to place the coro in same place every time
    $31 A 230 mesh 23x31 screen
    $30 Squeegee

    Total, about $100

    I am planning to use some transfer rite heavy duty tape on the pallet (sticky side up, then use masking tape to hold it to the pallet) to hold down the coros (we do this already when mounting a bunch with the big squeegee)

    I thought this would be a good way to do a couple of those bandit sign jobs we get calls on now & then... If it works out I have my eye on a Workhorse 4-1 with a vacuum pallet ($1500) or a used Lawson Mustang ($5K -$7K)

    The screen place here in Tempe sold me some "ColorFX" ink and some retarder... no idea if that is good or not. Tubelite is across town, O think thet carry Ulano & Nazdar

    Note...

    This is not for tshirts, just coro signs, maybe some poly coated cardboard.


    Attached Files:

    Tags:
  2. OldPaint

    OldPaint Major Contributor

    CLEAN UP THAT WORKBENCH..........hehehehehehehe
    your getting smart, good one!!!!

  3. Salmoneye

    Salmoneye Very Active Member

    1,257
    0
    0
    Oct 22, 2009
    Awesome set-up! Are these the types of clamps that hinge? If so where can I buy them? I have a cut and print machine so I would imagine that there is a film that would be easy to cut to produce negatives or positives. Is there an easy and economical way to expose the screens that results in a quality job?

  4. jiarby

    jiarby Major Contributor

    4,532
    0
    0
    Feb 11, 2007
    google up "Jiffy Hinge" or "Jiffy Clamp". I got mine at Advanced Screen Technologies in Tempe AZ for $21.95.

    I read that some folks use cheap cut vinyl (like 651) to make a screen for short run stuff but that is for plastisol... no idea if the much more agressive solvents in coro ink will allow the vinyl to stick to the screen very long. I am planning to use Ulano QTX emulsion based soley on some online recommendations....not based on personal experience.

    Printing 18x24 transparencies may be the tough part... I wonder if there is a 24" roll of something that I can print using my Mutoh?? Or maybe a cleat 18x24 sheet of mylar and then mount cut vinyl to it to expose the screen. I can print 13x19 sheets on my Ricoh GX7000 but that is loaded up with sublimation ink... plus it is still too small!

    Next thing is to rig up something to hold it in the UP position so I can change out the coros in between pulls. Some kind of spring, kickstand, or counter weight.

    Yeah, OP... the bench is a mess! I'll get right on it!

  5. Jackpine

    Jackpine Major Contributor

    You can use a mist coat of spray adhesive for "table tack" with coroplast.

  6. Wes Phifer

    Wes Phifer Member

    162
    0
    0
    Oct 31, 2009
    We used to put cheap vinyl on glass to expose the screen. Just peel it off and do it again. Instead of printing positives.

  7. Signguyno1

    Signguyno1 Active Member

    621
    1
    0
    Jun 27, 2006
    3-M black vinyl on clear backer works great for positives

    Kick stand, a stick with a hole drilled thru and self tapping screw into frame will work till you can purchase a professional model.

    Hold down, 3-M's sandblast resist, used by memorial blasters. Spread on table, let set up, when ready print, when done wash off table with solvent.

    Ink, Nazdar universal 5900 series works great on many different medias.
    Get a Nazdar catalog has everything you need.

    Last edited: Feb 28, 2010
  8. jiarby

    jiarby Major Contributor

    4,532
    0
    0
    Feb 11, 2007
    glass is a great idea! Thx! DUH!

    I also have a bunch of Acrylic....

    Thx for the tips, Signguy! Do you mean that the sandblast resist is sticky enough to hold the coros to the pallette?

  9. Mosh

    Mosh Major Contributor

    5,758
    3
    38
    Oct 19, 2009
    Nerbaska
    Looks like what we had back in the 1980's! The problem with this set up is the screen goes up at such a sharp angle all the ink runs to the end so fast. I works great if you are not planning to do alot. A screen needs to stay below 35 degree, that setup will go almost vertical. Plan on having ink leaks at the end with this. How do you expose and reclaim screens? Didn't see that in the $100 budjet.

    Last edited: Feb 28, 2010
  10. WDP

    WDP Member

    277
    0
    0
    Sep 21, 2008
    For $95 more you could of bought one ready to go and saved your self the time.

  11. Farmboy

    Farmboy Active Member

    730
    0
    16
    Feb 8, 2007
    Auburn, NY
    Your gonna need solvent rest. tape to tape off the screen. You have to keep moving when you print these signs or the ink dries in the screen. I'd start off with a small order. Small enough so that if screening doesn't work you can cut them. Make sure you have extra blanks on hand. We used to print yard signs...the hell with that lol We digi print small orders and farm out larger ones. The big places sell them finished for less than what I can print them for. It's a pain in the ***, but give it a whirl.

  12. Mosh

    Mosh Major Contributor

    5,758
    3
    38
    Oct 19, 2009
    Nerbaska
    Have the right equipment and they are big money makers. BUT, you have to have the right equipment, that homemade job is not it. We do loads of yard signs, in fact it is an election year and are already getting orders for that. High production times we put out 1,200 2 sided signs a day.

  13. jiarby

    jiarby Major Contributor

    4,532
    0
    0
    Feb 11, 2007
    Didn't see one anywhere already made. Besides, it was a fun Sunday project to make and I now have enough materials (well, melamine & such) to make 2 more.

    Mosh,

    I never meant that I was ready to go for $100...
    I do not have:
    a washout booth,
    an exposure unit,
    a pressure washer,
    a drying rack,
    a screen rack,
    chemicals (degreaser, emulsion, screen reclaimer, etc...)

    However...

    I have access to a screenshop that will coat & expose my screens (or let me do it there) and also use their washout booth.

    I'll go buy whatever I need when I feel like I am comfortable doing it... but as of today I have never pulled a squeegee even once, so this is really a "proof of concept". If it works I'll buy the right stuff> I already have sublimation printer, Mutoh 1604 printer, vinyl plotter, heat press, 50w laser engraver, lots of gear!! I am not afraid to buy stuff if it is a process I can make money doing.

  14. Mosh

    Mosh Major Contributor

    5,758
    3
    38
    Oct 19, 2009
    Nerbaska
    Using that set-up (like I said we used one back 20 years ago like it) don't put alot of ink in the screen at one time. Just a tip from someone who had to clean up alot of ink leaks from doing so.

  15. royster13

    royster13 Very Active Member

    1,834
    2
    38
    Apr 3, 2009
    Montrose BC
  16. Mosh

    Mosh Major Contributor

    5,758
    3
    38
    Oct 19, 2009
    Nerbaska
    Talk about a homemade basement shop...I bet they have some people tied up in the next room, and one of the printers is names "Zeb".

    My "cans" don't go that SLOW!!!! Besides no way I would let any of my "employees" wear those funny face-mask things. That is like something gang-bangers wear!

  17. nodrenim

    nodrenim Member

    385
    0
    0
    Nov 23, 2003
    I use paper package sealing tape that has a water based adhesive to seal my screens to the frames for any solvent based inks, cheap and durable. Also some retarder thinner helps a bunch with the screen clogging problem.

  18. wildindian

    wildindian Member

    119
    0
    0
    Jul 2, 2006
    Let me say that if you have never screenprinted anything, you picked a difficult substrate to start your printing career. Coro has ridges and static and the ink is very thin, as Mosh stated cannot get the screen at too great of an angle or ink will spill, tape and adhesvise will work for holding the coro down but vacuum not only holds the coro down but also helps in the distribution of the ink across the entire printed area. To use a screen you can cut vinyl, apply it to your screen on the coro side and then coat with a solvent resist emulsion, let dry, remove vinyl, tape and print. Nothing works as good as Nazdar Ink and use a lot of retarder. Be glad to help in anyway I can. For the money if you can find a Filbar press they print yard signs as good as any press in the world and are simple to use and maintain. Use 2 of them and can print 500 signs an hour on each. Make sure you have drying rack or adequate space to lay signs to dry. Good luck in your endeavor.

  19. Gino

    Gino Premium Subscriber

    28,560
    527
    113
    Jun 7, 2006
    PA
    For your first attempt.... this is fine. We still do many of our jobs this way. We don't always use our vacumm table.

    For your kick stand.... just use a paint stirrer with a screw placed strategically in the side so you get the screen to go up about 45°. Don't worry about your ink spilling out. Only put a small amount in to do 20 or so panels at a time and your ink will stay put. Besides, if others are using their ink to the point its spilling out... I would venture to say they are thinning it down to far. Ink for flat stock is gonna be the consistency of pancake batter and if you're moving along at a normal pace..... it won't have a chance to make a mess.

    You need more than 35° opening, in case you need to wipe the screen down or play with the underside if a problem arises.

    Look into 'Cut Green' from Ulano for making your screens.... it's a great product.
