Need Help VP 540i Distortion, Double Printing, Wavy Edge?

Discussion in 'Roland' started by player, Nov 24, 2019.

  1. Nov 24, 2019 #1
    player

    player Major Contributor

    4,916
    190
    63
    Apr 24, 2006
    Toronto

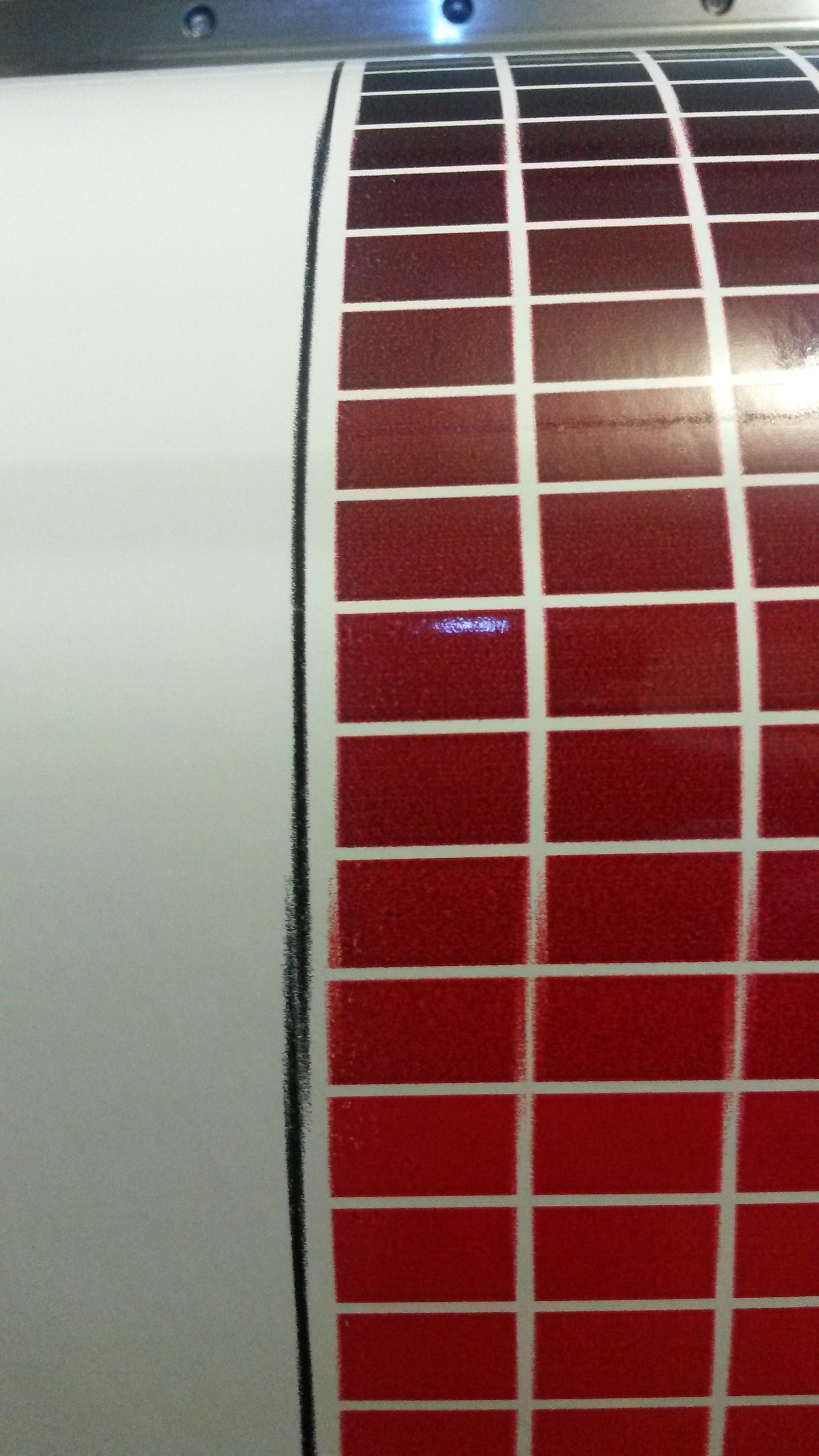

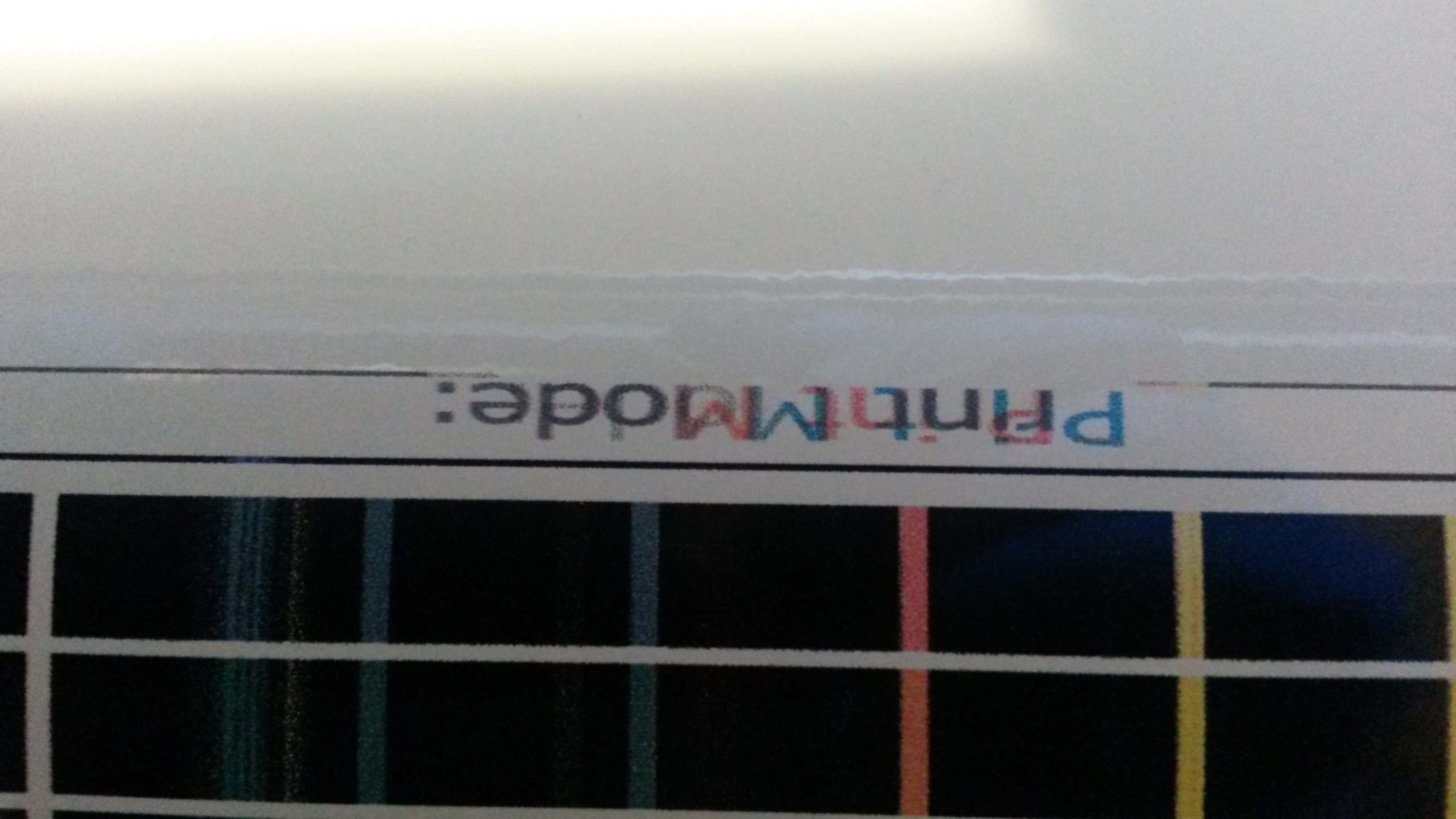

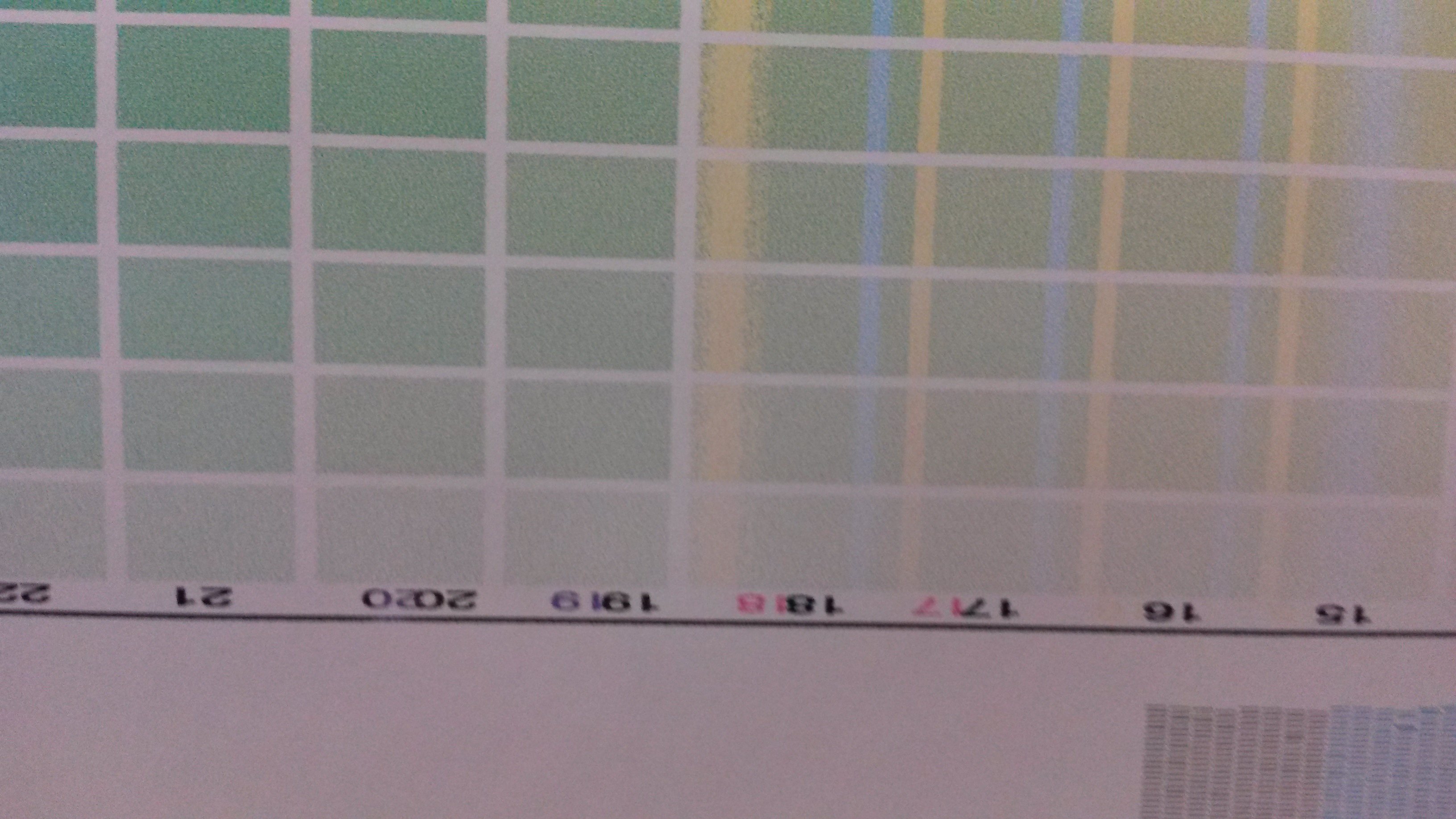

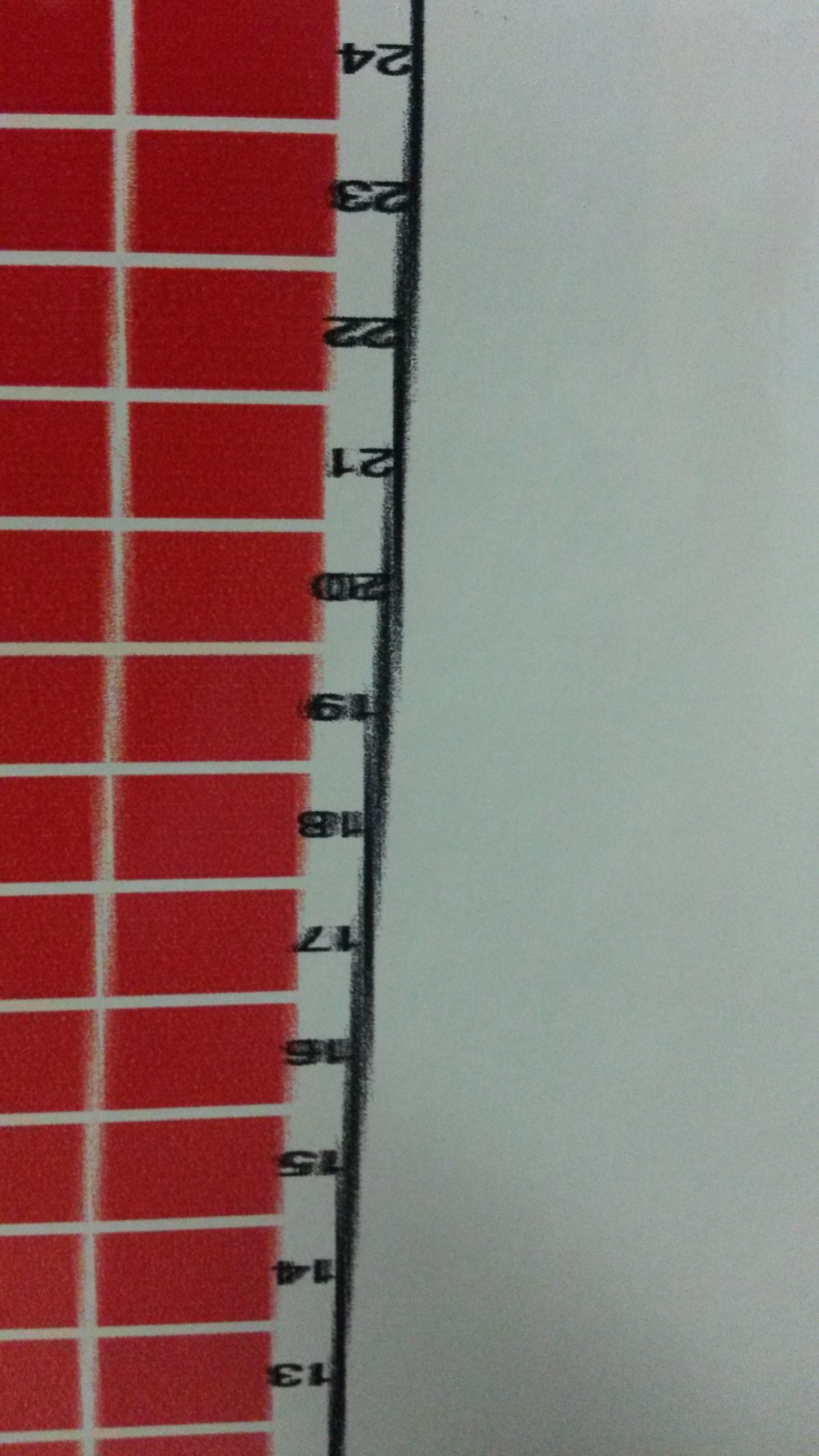

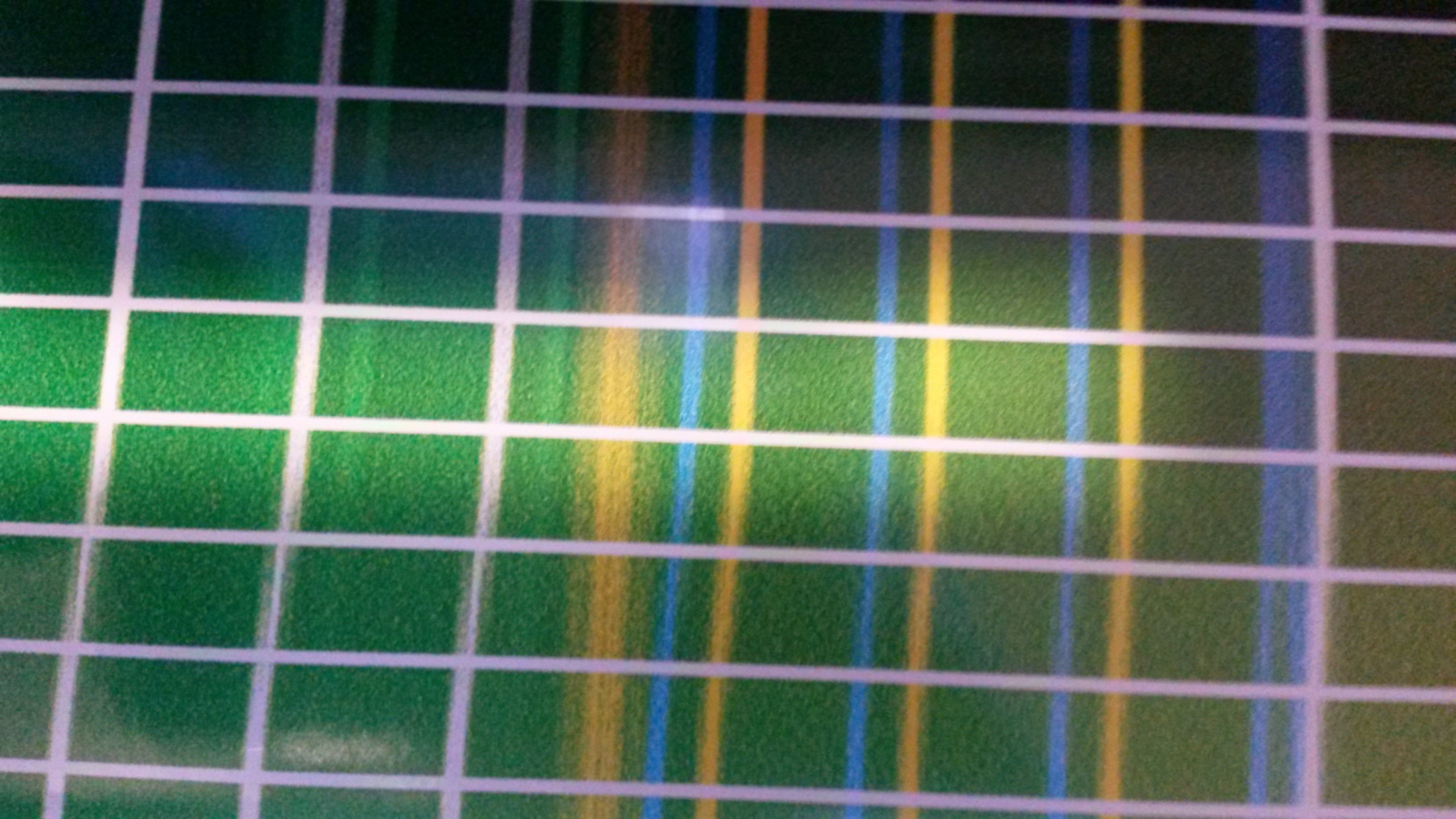

    I am having trouble getting a good print. Here are photos from a 48" x 16" Pantone chart I printed as a test. The left and right edges are wavy and distorted. There is a row about a foot in that things get scrambled along. The #17 is black and it prints that plus a ghost #17 1/4" away in red. The swatches are all scrambled and goofy running down the print in that one area. The lettering at the bottom of that area is
    also all scrambled.

    Any ideas?













    Attached Files:

    Last edited: Nov 24, 2019
    Tags:
  2. Nov 25, 2019 #2
    player

    player Major Contributor

    4,916
    190
    63
    Apr 24, 2006
    Toronto
    Anyone ever seen this before?

  3. Nov 25, 2019 #3
    Malkin

    Malkin Very Active Member

    2,200
    28
    48
    Feb 11, 2009
    Augusta, ME
    Very likely an issue relating to the encoder strip, or it's sensor.

    We cleaned and cleaned and eventually replaced our strip and still had issues. Turns out that our VP-540 makes more overspray than most (according to tech) and the sensor was covered in ink. Tech changed it out and it's been fine ever since. That was at about 7-8 years old, it's 11+ now.

    • Like Like x 1
    • Agree Agree x 1
  4. Nov 26, 2019 #4
    player

    player Major Contributor

    4,916
    190
    63
    Apr 24, 2006
    Toronto
    Bump for help!

  5. Nov 27, 2019 #5
    jfiscus

    jfiscus Map Wraster

    3,207
    243
    63
    Apr 2, 2009
    Cincinnati, OH
    Malkin above is correct. It is either the encoder strip or sensor is dirty. Clean them.
