Illustrator and photoshop not printing same blue.

dypinc

dypinc

New Member
altereddezignz said:
Here is the file i printed. It doesnt even see the pantone color from photoshop but it does from AI.
Also as you can see the cmyk mix doesnt match either lol.. The second print i have laid over the bottom is the correct pantone blue from illustrator.
Click to expand...

What happens if you save it from PS as a PDF with Spot Colors checked. Does Onyx see the spot that way.

Onyx should be reading that spot, or is that an RGB tif, as I know some RIPs if set for an RGB workflow will not read or show spot colors.

A

altereddezignz

New Member

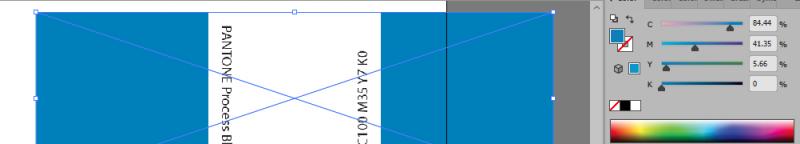

Here is the file listed above placed in illustrator.
Both swatches showthe same cmyk mix but both are wrong based on how my printer rips it.

My printer rips 8 pass material at
C-93.7
M-4.3
Y-5.5
K-0
O-0
R-0

It rips it at 12 pass at
C-94.5
M-4.7
Y-4.7
K-0
O-0
R-0

The spot color on the file from above shows or rips white. Saved it exactly how you stated to.


Attachments

  • ScreenHunter_26 Dec. 22 09.59.jpg
    ScreenHunter_26 Dec. 22 09.59.jpg
    13.4 KB · Views: 145
S

shoresigns

New Member
I didn't have time to test the PSD file I attached here yesterday. I've never tested spot colours on raster with our RIP before, but after testing it this morning, it looks like it might be an issue of the RIP being incompatible with spot colours in the formats we're giving it.

I'm on Versaworks, but it doesn't see the spot colours in the TIFF file either. I tried a couple of PDF files with different options and I got Versaworks to recognize the spot colour, but it still shows as white on the preview image. I'll post back here if I manage to figure it out.

A

altereddezignz

New Member
shoresigns said:
I didn't have time to test the PSD file I attached here yesterday. I've never tested spot colours on raster with our RIP before, but after testing it this morning, it looks like it might be an issue of the RIP being incompatible with spot colours in the formats we're giving it.

I'm on Versaworks, but it doesn't see the spot colours in the TIFF file either. I tried a couple of PDF files with different options and I got Versaworks to recognize the spot colour, but it still shows as white on the preview image. I'll post back here if I manage to figure it out.
Click to expand...

Your doing the same thing i am doing with saving as different files and trying it out. Thanks for the help maybe i am just missing something.. not sure.

S

shoresigns

New Member
After some more digging online, apparently you're supposed to use a DCS 2.0 EPS file if you want to export spot colours from Photoshop. Then I found a doc from Roland stating that Versaworks does not support additional spot colours in DCS 2.0 files, so I think it's game over for me, but you should definitely give that a try and see if Onyx supports it.

A

altereddezignz

New Member
shoresigns said:
After some more digging online, apparently you're supposed to use a DCS 2.0 EPS file if you want to export spot colours from Photoshop. Then I found a doc from Roland stating that Versaworks does not support additional spot colours in DCS 2.0 files, so I think it's game over for me, but you should definitely give that a try and see if Onyx supports it.
Click to expand...

Found the same website i think you did haha. About to try the DCS 2.0

A

altereddezignz

New Member

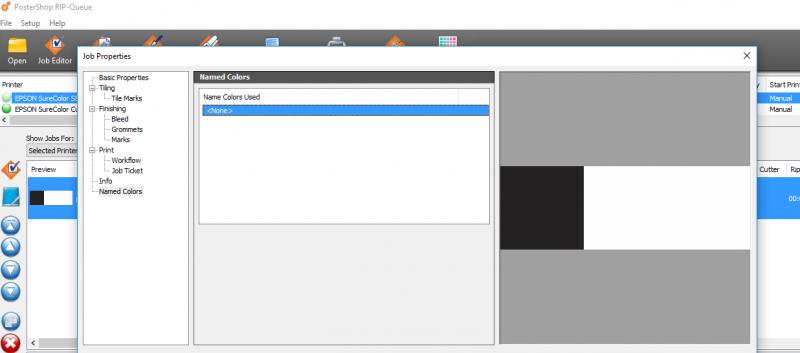

File opens and rips as a black. Even shows no pantone color like the others..

More testing lol


Attachments

  • ScreenHunter_26 Dec. 22 12.31.jpg
    ScreenHunter_26 Dec. 22 12.31.jpg
    27.7 KB · Views: 125
dypinc

dypinc

New Member
shoresigns said:
After some more digging online, apparently you're supposed to use a DCS 2.0 EPS file if you want to export spot colours from Photoshop. Then I found a doc from Roland stating that Versaworks does not support additional spot colours in DCS 2.0 files, so I think it's game over for me, but you should definitely give that a try and see if Onyx supports it.
Click to expand...

Doesn't Versaworks support PDF files with spot colors? Sure it must, and you can save a PDF with spot colors from PS.

A

altereddezignz

New Member

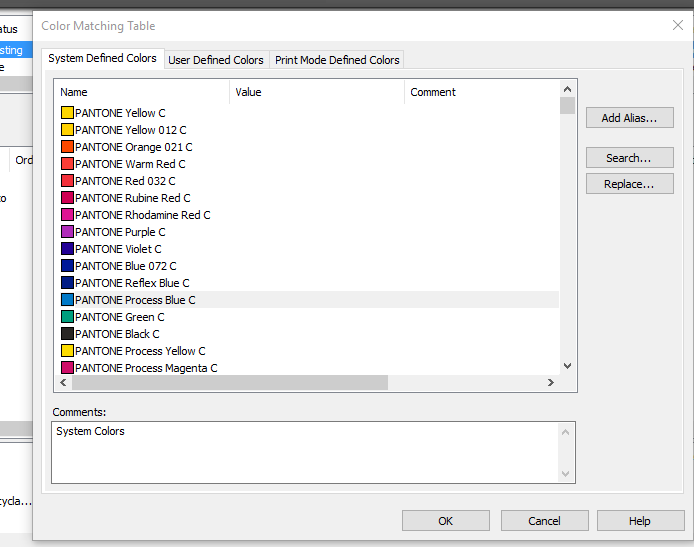

Just incase anyone want to make sure the color is being typed or used right when saving the pantone name here is the pantone name in onyx.


Attachments

  • ScreenHunter_26 Dec. 22 12.37.png
    ScreenHunter_26 Dec. 22 12.37.png
    24.1 KB · Views: 134
S

shoresigns

New Member
dypinc said:
Doesn't Versaworks support PDF files with spot colors? Sure it must, and you can save a PDF with spot colors from PS.
Click to expand...
Yes, but as far as I can tell, the spot colours in the artwork have to be vector. I managed to get Versaworks to recognise a Pantone colour in a PDF from Photoshop this morning, but it doesn't recognise the artwork in the single-colour raster layer - it just shows up as white in the preview window.

dypinc

dypinc

New Member
shoresigns said:
Yes, but as far as I can tell, the spot colours in the artwork have to be vector. I managed to get Versaworks to recognise a Pantone colour in a PDF from Photoshop this morning, but it doesn't recognise the artwork in the single-colour raster layer - it just shows up as white in the preview window.
Click to expand...

You did check for the spot channel in the PDF in Acrobat? If it is there and shows correct then it sure must be a Versaworks issue. A PDF with a raster spot channel shows up as a correct spot in Colorgate.

S

shoresigns

New Member
dypinc said:
You did check for the spot channel in the PDF in Acrobat? If it is there and shows correct then it sure must be a Versaworks issue. A PDF with a raster spot channel shows up as a correct spot in Colorgate.
Click to expand...

Yes it's there in Acrobat and Illustrator, and Acrobat identifies the spot colour in pre-flight.

One potential problem I see when I open it in Illustrator is that the CMYK layer (with no transparency) appears to be on top of the spot colour layer, effectively covering it up so you can't see it. This matches what Versaworks shows in the preview window, but Acrobat renders it just fine. Here's the file if you want to have a look (attached).


Attachments

  • pantone-blue-test.pdf
    823.9 KB · Views: 174
dypinc

dypinc

New Member
shoresigns said:
Yes it's there in Acrobat and Illustrator, and Acrobat identifies the spot colour in pre-flight.

One potential problem I see when I open it in Illustrator is that the CMYK layer (with no transparency) appears to be on top of the spot colour layer, effectively covering it up so you can't see it. This matches what Versaworks shows in the preview window, but Acrobat renders it just fine. Here's the file if you want to have a look (attached).
Click to expand...

It's your over print settings. If you uncheck Simulate Overprint it will be white in Acrobat.

A

altereddezignz

New Member
Andy_warp said:
Look at comment #8

:)
Click to expand...

Oh i am by no means saying your wrong by any means. I just figured someone might have found a workaround or something. I have so many files created in illustrator that i would need to work with in photoshop and for them to match. Thats my issue..

dypinc

dypinc

New Member
altereddezignz said:
Oh i am by no means saying your wrong by any means. I just figured someone might have found a workaround or something. I have so many files created in illustrator that i would need to work with in photoshop and for them to match. Thats my issue..
Click to expand...

Two choice as I see it.

Do the output CMYK values for your printer with Color Replacement on the RIP.

Or, make the input match by creating the same color from Il and PS, meaning both Pantone Spot or both RGB having the same working RGB profile.

Both methods have been demonstrated here, and work.

A

altereddezignz

New Member
dypinc said:
Two choice as I see it.

Do the output CMYK values for your printer with Color Replacement on the RIP.

Or, make the input match by creating the same color from Il and PS, meaning both Pantone Spot or both RGB having the same working RGB profile.

Both methods have been demonstrated here, and work.
Click to expand...

One issue. When creating in RGB even if you enter the same RGB values for a swatch in photoshop it still doesnt print the correct color after ripped in onyx as the one does from illustrator.

I think easiest way would be to use the color replace. Only issue i can see there would be in any gradients.

dypinc

dypinc

New Member
altereddezignz said:
One issue. When creating in RGB even if you enter the same RGB values for a swatch in photoshop it still doesnt print the correct color after ripped in onyx as the one does from illustrator.

I think easiest way would be to use the color replace. Only issue i can see there would be in any gradients.
Click to expand...

If your using the same RGB values in Illustrator as Photoshop and not getting the same print then you have a color management issue.
